Student tutorial: React and Gitlab pages

In this tutorial futureproof associate, Joshua Torbett, will be showing you how to deploy a react application with a Gitlab deployment pipeline to Gitlab pages.

Pre requisites

For this tutorial you will need to have the following setup

Check git, node & npm have installed properly with:

git --version



node --version



npm --version



Creating our react app

In a directory of your choice create a react app with the following command:

npx create-react-app gitlab-pages-react-example



(Feel free to change gitlab-pages-react-example to whatever name you desire)

Enter your new react project folder:

cd gitlab-pages-react-example



You can use npm start to check your project runs properly and you should see the following at http://localhost:3000

Screenshot 2021-01-26 at 15.50.13

Upload your react app to Github

Create an empty public repository on Github. Then to your local react project and enter these commands to push your code to Github.

git remote add origin https://github.com/jtorbett23/gitlab-pages-react-example.git

(You will need to replace https://github.com/jtorbett23/gitlab-pages-react-example.git with the link to your repository)

git push -u origin master



You should now see your react application on your Github repository:

Screenshot 2021-01-26 at 15.54.49

Linking Gitlab and Github

Login to your Gitlab account and create a new project choosing "Run CI/CD for external repository" selecting the repo we created earlier.

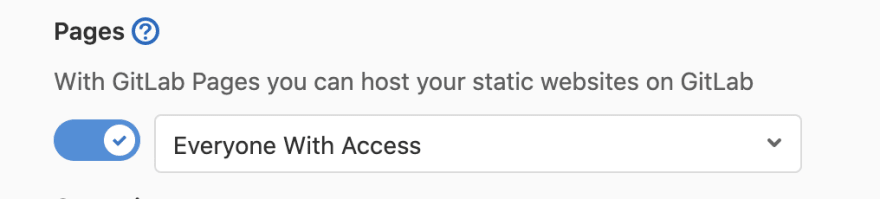

Once created open your project and go to Settings > General > Visibility, project features, permissions. Then check that Gitlab pages is allowed.

Screenshot 2021-01-26 at 13.54.43

Creating our deployment pipeline

For gitlab to create a pipeline to deploy code it requires a .gitlab-ci.yml file at the root level of project.
(Read more gitlab yaml here - https://docs.gitlab.com/ee/ci/yaml/)

Here is the .gitlab-ci.yml we will be starting with:

image: node

pages:
 stage: deploy
 cache:
   paths:
     - node_modules/
 script:
   - npm install
   - npm run build
   - rm -rf public
   - cp build/index.html build/404.html
   - mv build public
 artifacts:
   paths:
     - public
 only:
   - master



Images

image: node defines node as the type of image that docker will use, allowing use to access npm easily.

Note: if you require a specific node version that can be specified by adding :NODE-VERSION e.g image: node:10.16.3

Stages

pages:
 stage: deploy

This setups a stage for our pipeline, in which we can execute various scripts. For Gitlab pages we need to name this stage "pages" so it deploys content to the correct place.

Caching

cache:
   paths:
     - node_modules/


Caches our node_modules so we don't need to download dependencies every time we run our pipeline.

Scripts

scripts: allows use to run scripts through a terminal

  • npm install first installs/updates our dependencies
  • npm run build the builds our project into a build folder
  • rm -rf public will remove the public folder as we need to use the namespace public to help Gitlab pages recognise our site content
  • cp build/index.html build/404.html as react is a single page app we set the 404 page to a copy of our index.html to handle errors through index.html
  • mv build public copy the built project from build to public to allow Gitlab pages to recognise it once deployed

Artifacts

artifacts:
   paths:
     - public

Artifacts are the output of a pipeline stage and we output our public folder holding our built site.

Restricting pipeline stages

 only:
   - master



only lets us set what code branches of project will run this pipeline stage, it is set to master so we don't push development code to our site.

Deploying to Gitlab pages

Once your .gitlab-ci.yml has been pushed to your Github repo Gitlab will sync these changes and run a pipeline based off it.

Your root folder should look like:

-public
-src
-.gitignore
-.gitlab-ci.yml
-package-lock.json
-package.json





On Gitlab navigate to CI/CD > Pipelines and you should see a pipeline has been triggered. Once your pipeline is completed it should look like this:

Screenshot 2021-01-26 at 17.39.51

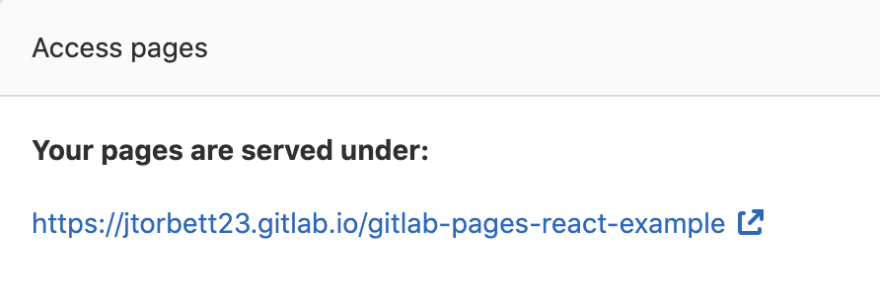

After your pipeline is complete you will be able to view your site by navigating to Settings > Pages and clicking the url under "Access pages"

Screenshot 2021-01-26 at 16.45.50

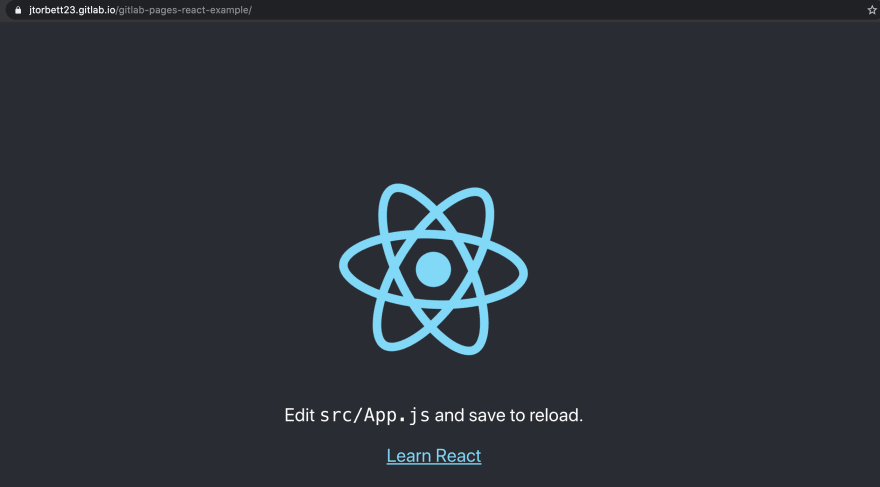

Your page should look like this:

Screenshot 2021-01-26 at 16.44.09


Note: we are now have the padlock so are using https.

If you instead just get a white page, you will need to edit your package.json and add the "homepage" attribute. For my project my url is https://jtorbett23.gitlab.io/gitlab-pages-react-example/, so I will need to set my homepage as "gitlab-pages-react-example".

{
 "homepage": "gitlab-pages-react-example",
 "name": "gitlab-pages-react-example",
 "version": "0.1.0",
...



You will need to wait for new pipeline to successfully run before seeing the changes.

Deploying a change from our local machine

Now let's make a change to locally to see if updates our site automatically.

Change the text in src/App.js from:

<p>
 Edit <code>src/App.js</code> and save to reload.
</p>

to whatever you would like e.g:

<p>
 Deployment pipeline is working :)
</p>

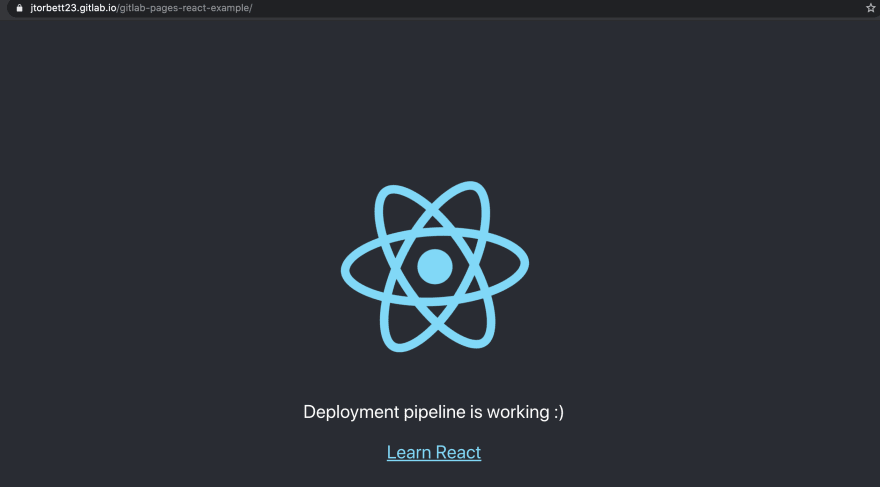

Push these changes and it should trigger your deployment pipeline. After it has finished you should see your changes on Gitlab Pages:

Screenshot 2021-01-26 at 16.57.45

Improving our pipeline

Currently our pipeline only consists of a single step which means when we are developing further down the line it will be hard to know why our pipeline is failing.

So we are going to separate our pipeline into three stages: build, test and deploy.

Build

build:
 stage: build
 cache:
   paths:
     - node_modules/
 script:
   - npm install
   - npm run build
 artifacts:
   paths:
     - build



Here we install and cache our dependencies and then build the project outputted as an artifact to be accessible by other stages.

Test

test:
 stage: test
 cache:
   paths:
     - node_modules/
   policy: pull
 script:
   - npm run test



Here we use the cached dependencies through the policy: pull to run our test scripts.

For this stage we will also need to update test script in the package.json to make sure it finds all our test scripts.

...
"scripts": {
   "start": "react-scripts start",
   "build": "react-scripts build",
   "test": "react-scripts test --watchAll=false",
   "eject": "react-scripts eject"
 }
...



This is done by adding the option --watchAll=false.

Deployment

pages:
 stage: deploy
 dependencies:
   - build
 script:
   - rm -rf public
   - cp build/index.html build/404.html
   - mv build public
 artifacts:
   paths:
     - public



Here we take the built project from the build stage's artifact and then deploy the code as normal.

Here is the final .gitlab-ci.yml:

image: node

build:
 stage: build
 cache:
   paths:
     - node_modules/
 script:
   - npm install
   - npm run build
 artifacts:
   paths:
     - build

test:
 stage: test
 cache:
   paths:
     - node_modules/
   policy: pull
 script:
   - npm run test

pages:
 stage: deploy
 dependencies:
   - build
 script:
   - rm -rf public
   - cp build/index.html build/404.html
   - mv build public
 artifacts:
   paths:
     - public
 only:
   - master



Wrap up

You have now learned how to deploy a react application from Github to Gitlab pages using Gitlab CI/CD pipeline.

Here are the links for the completed project for reference:
Github - https://github.com/jtorbett23/gitlab-pages-react-example
Gitlab - https://gitlab.com/jtorbett23/gitlab-pages-react-example
Gitlab Pages url - https://jtorbett23.gitlab.io/gitlab-pages-react-example/

joshua torbett futureproof associate guest cblog contributer

A huge thanks and well done to Joshua Torbett for this post!

Joshua joined the futureproof cohort in 2019 and now works as a Software Engineer annd Capital One.
